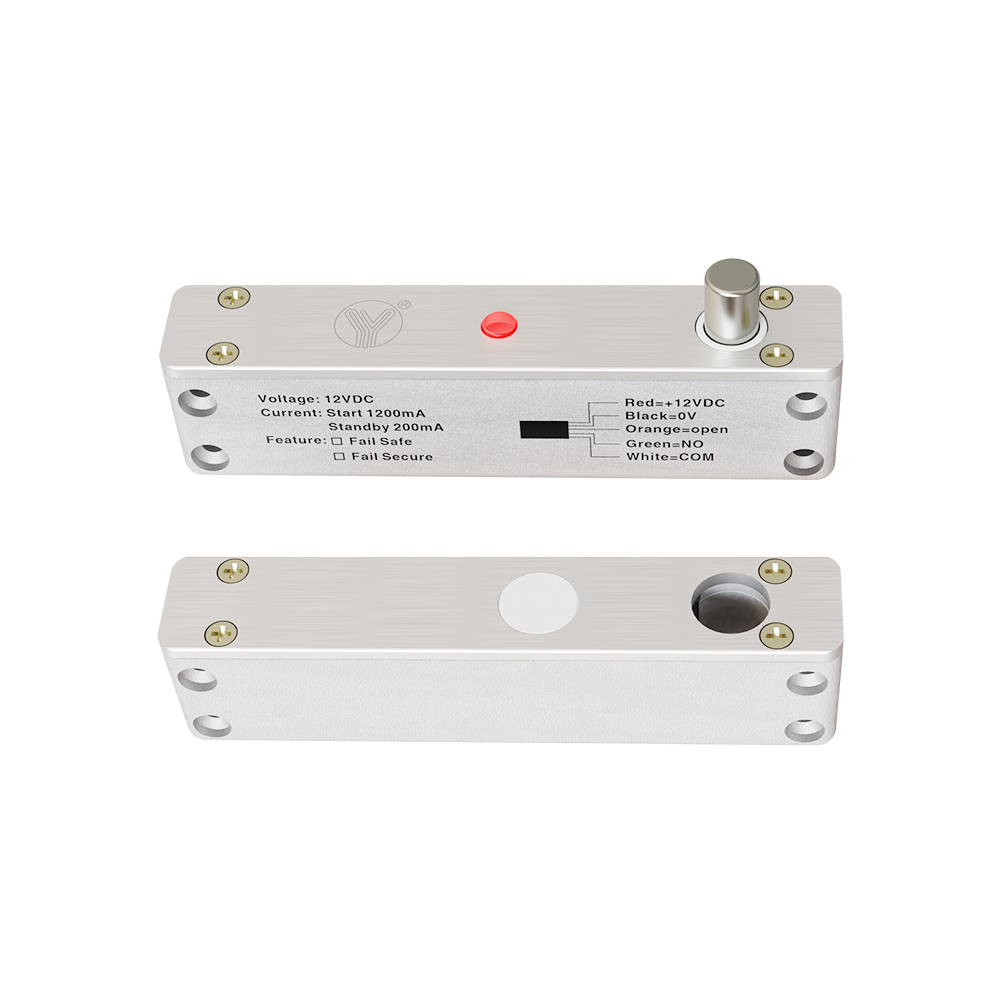

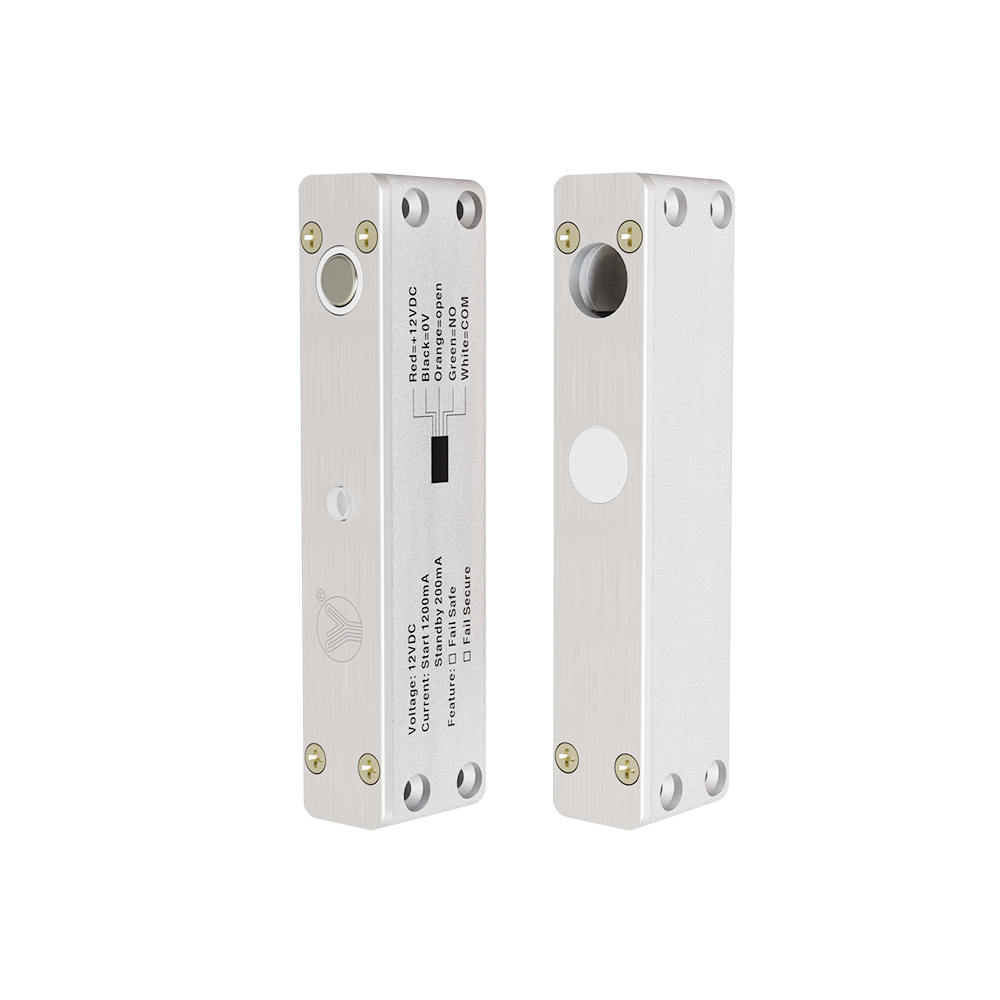

Mini Electric Bolt for Narrow Frame Door
Model:YB-90NI(LED)
YB-90NI(LED) is an Mini Electric Bolt for Narrow Frame Door .suitable for narrow frame doors which is possess with Double protection for loading current. The bolt is made of 304 stainless steel solid bar with 600kg holding force and anti-burglar design. It contains the design of magnetic valve, particular photoelectric control structure
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Safe

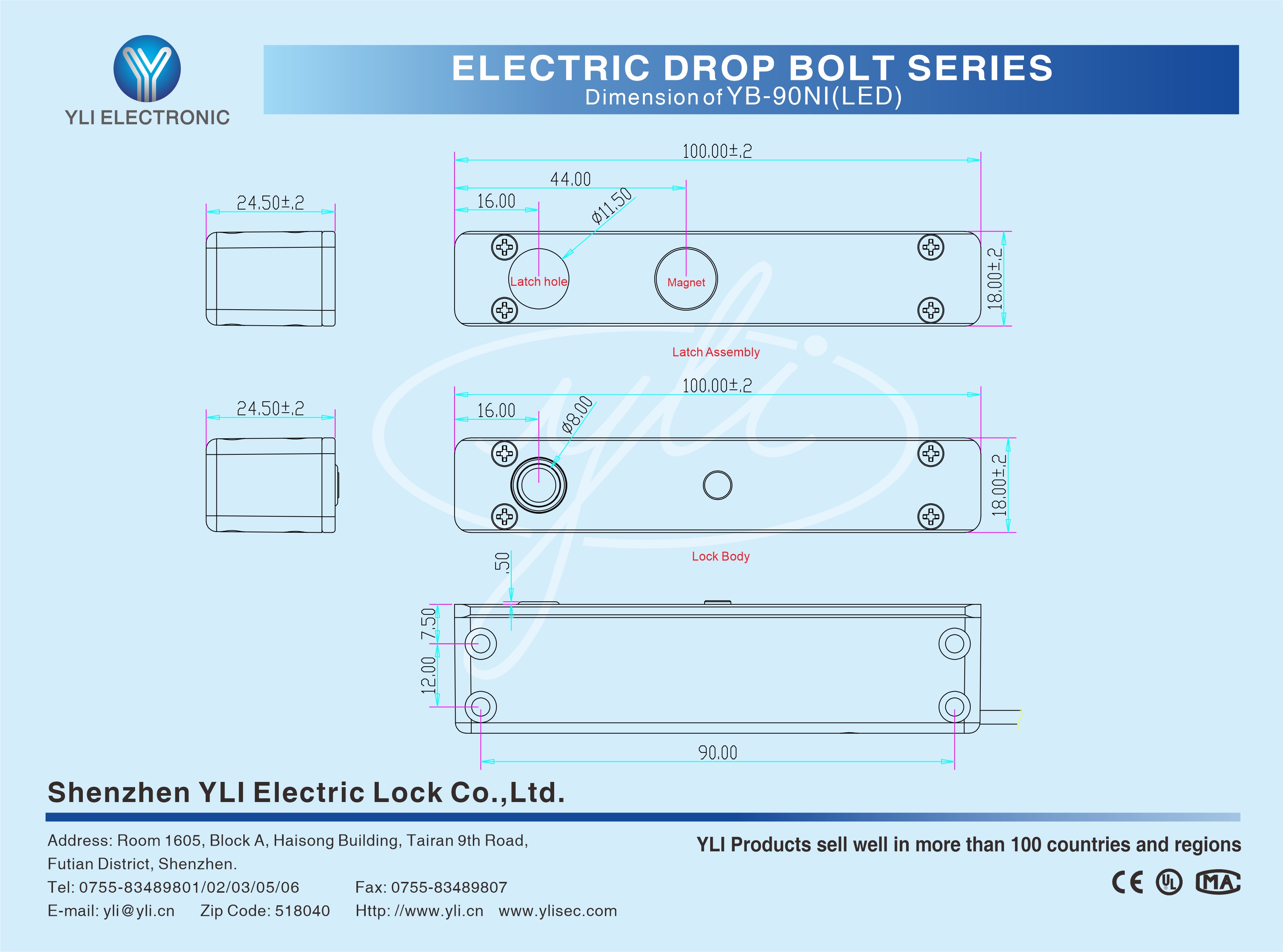

Face Plate 100Lx18Wx24.5H(mm)
Bolt 10mmDIA,stainless steel 8mm throw
Solid Bolt Holding Force Polishing  stainless steel, bearing 600kg
Signal Output NC/COM
Protective Design 0/3sec
Voltage 12VDC
Current Start 1200mA;Standby 200mA
LED Light on when locked, light off when unlocked

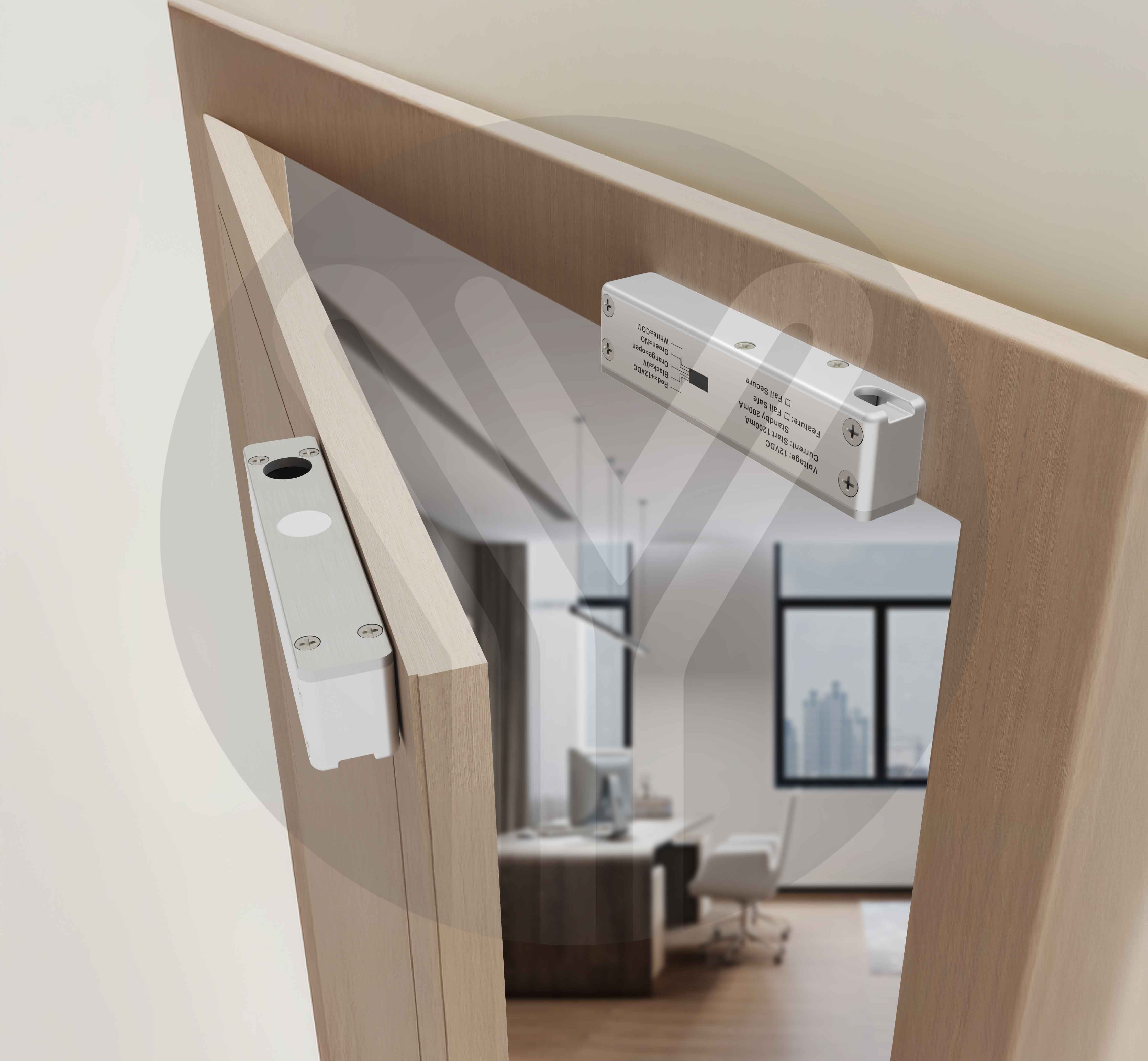

Suitable for  Narrow door
Induction Distance 8mm
Bolt structure 304 stainless steel
Static strength test approx. 600kg
Operating temp -30℃~+60℃(-22~140℉)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 operations
Face Place Material High strength aluminum alloy with Japanese crushed grain processing
Weight 0.6kg

Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
