Electric Bolt
首頁  ?  Home  ?  Products  ?  Electric Bolt
There are 42 Similar products,Comparison

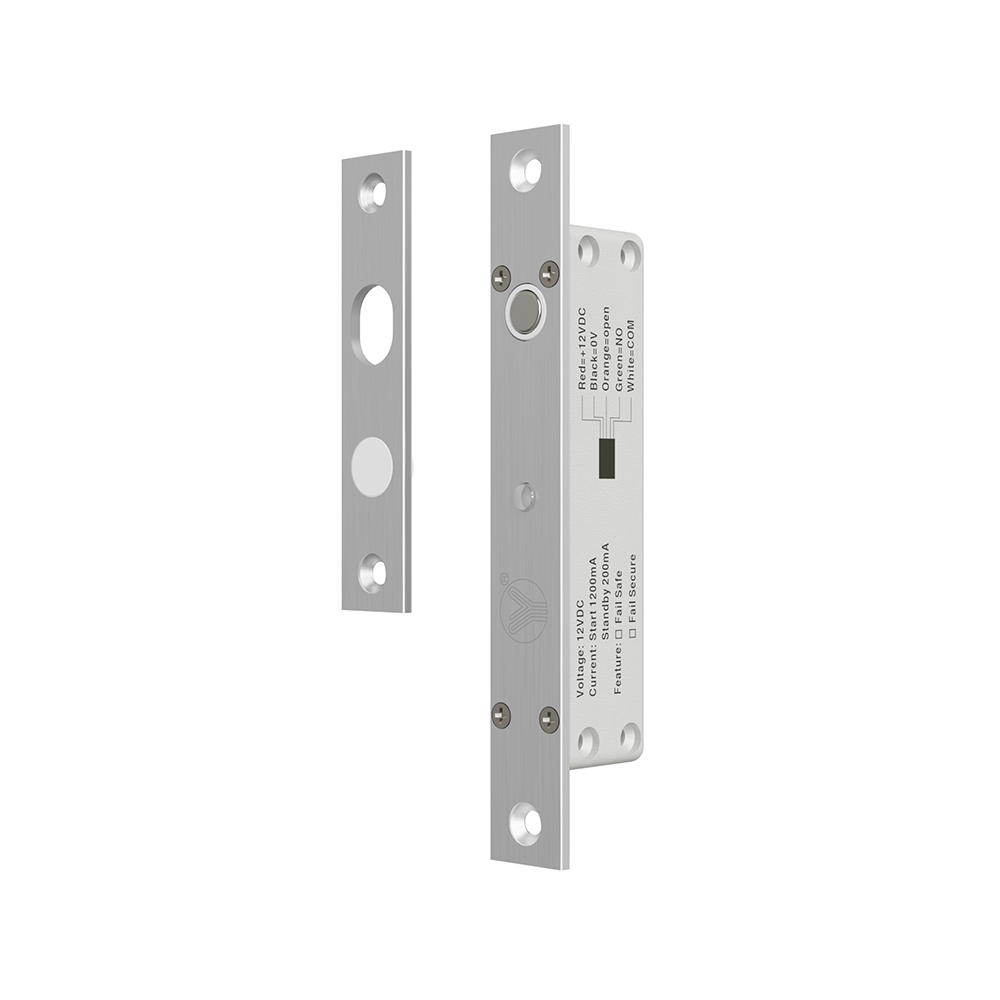

Fail Safe Mini Electric Bolt
Model:YB-90NA(LED)
YB-90NA(LED) is an Mini Electric Bolt,which is manufactured by 304 type of stainless steel with special design.The linkage,manufactured by lathe,can withstand 600kg holding force.The special design of all-metal linkage parts results it can bear with the temperature of 60 ℃ or?-30 ℃ below zero,it pass through security test after it has been used for over 1 million times
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Safe
Dimension 135Lx18Wx24.5H(mm)
Strike 90Lx18Wx2.5H(mm)
Signal Output NC/COM
Protective Design 0/3sec
Voltage 12VDC
Current Start 1200mA;Standby 200mA
LED Light on when locked, light off when unlocked
Induction Distance 8mm
Bolt structure 304 stainless steel
Static strength test approx. 600kg
Suitable For  Wooden Door,Glass Door,Metal Door,PVC Door
Operating temp -30℃~+60℃(-22~140℉)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 operations
Face Place Material High strength aluminum alloy with Japanese crushed grain processing
Weight 0.6kg

Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
