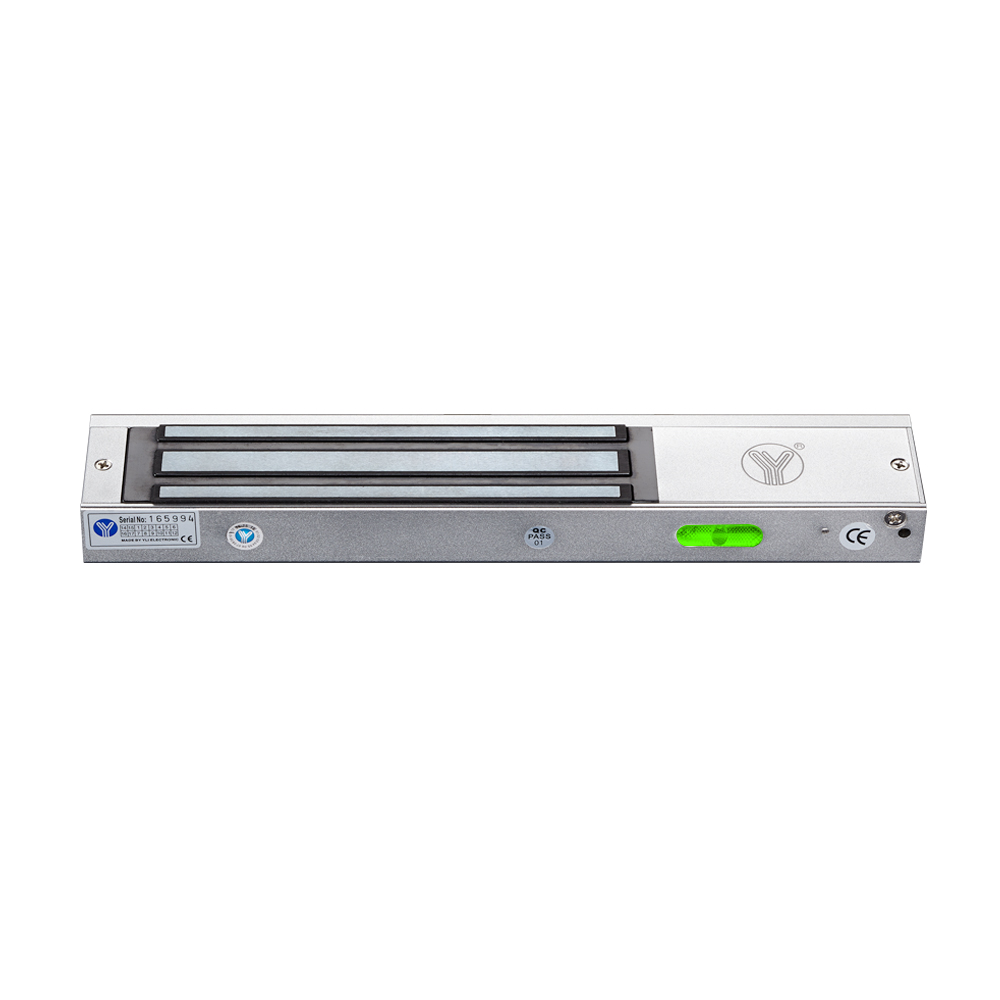

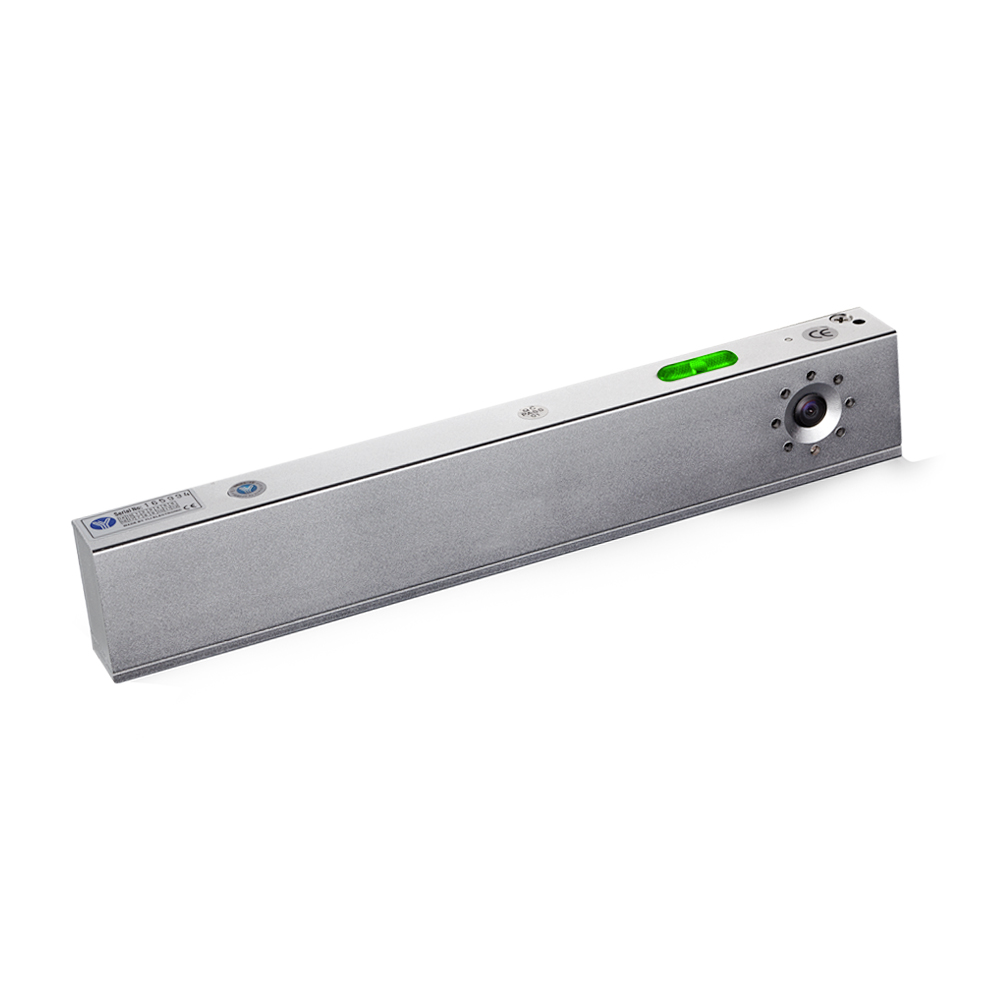

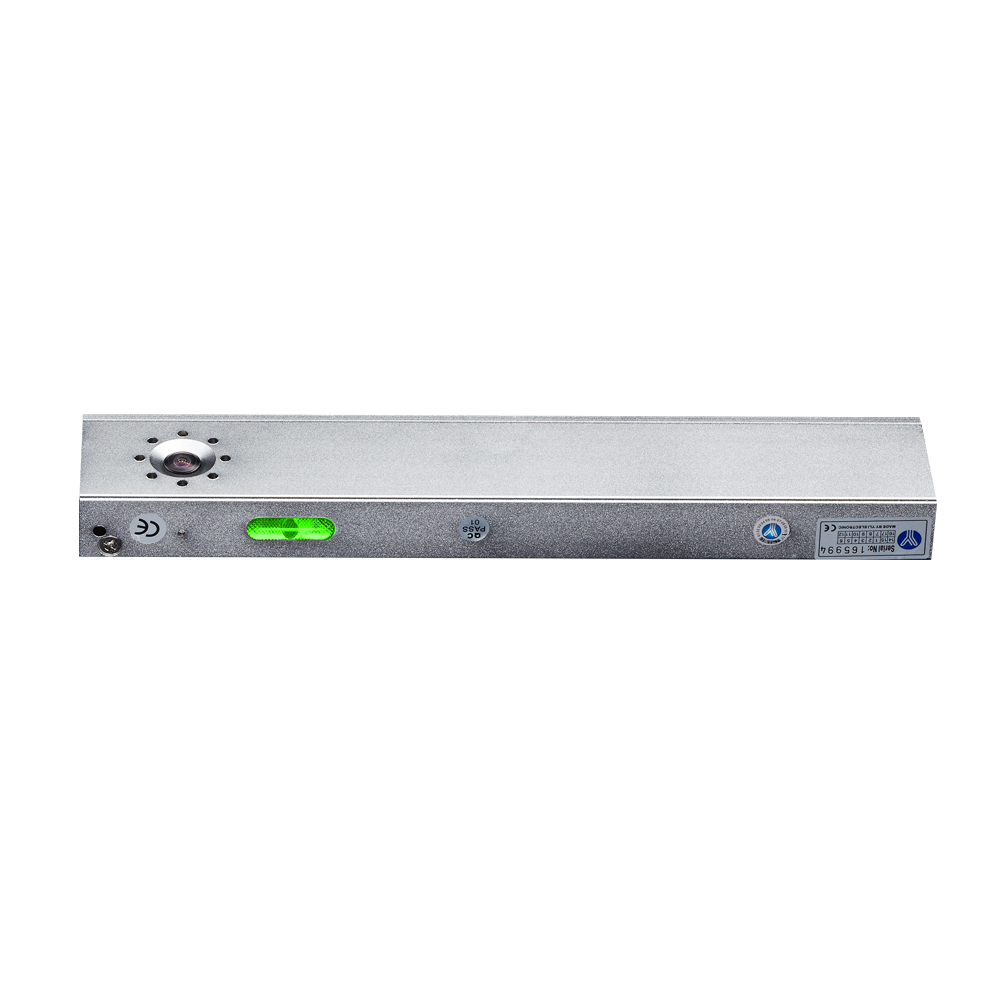

Single Door Magnetic Lock with Camera
Model:YM-280CAM
YM-280CAM Single Door Magnetic Lock with Camera is for glass door, wooden door, fireproof door, sliding door and metal door. Inbuilt time delay mould and can set up 0,3,6,9sec .It is suitable for the card reader.
Keywords:
Teilen Sie zu:
Product Parameter Parameter Description

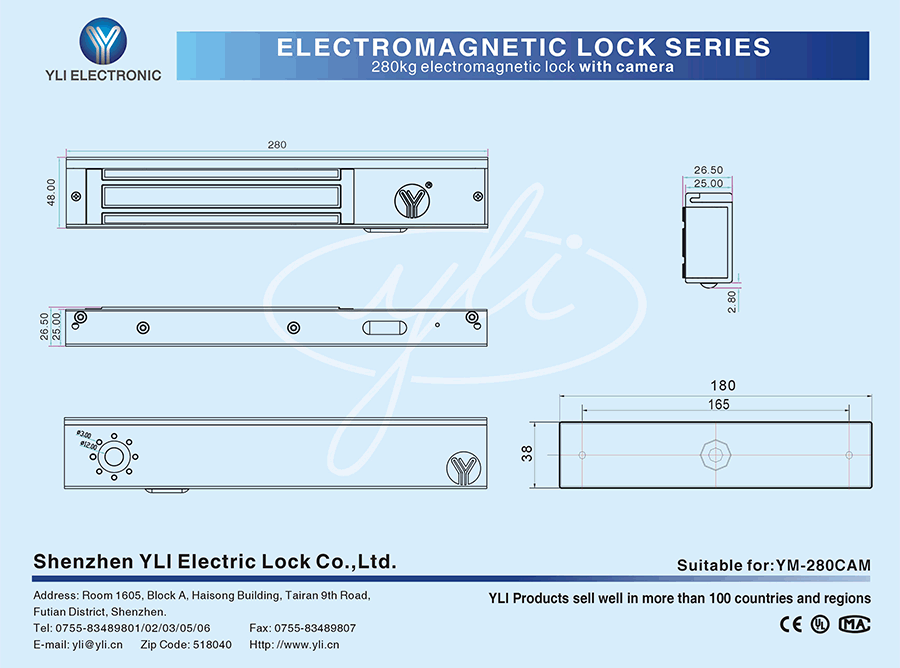

Size 280Lx48Wx26.5H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/600mA or 24V/300mA
Signal Output NO/NC/COM
LED Red shows unlocked ;Green shows locked
Time Delay 0/3/6/9sec adjustable
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Video Pattern PAL/NTSC
Resolution Ratio 550TVL
Video Output 1Vp-p(75Ω /BNC)
Visual range 7m
Weight 2.4KG

Collinear Load Test 280kgx2,600poundsx2.

Dual Voltage 12 or 24 VDC(optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

Anti-Residual Magnetism Designed.

High Strength Material,Anodized Aluminum Housing.

Design without Mechanical Failure.

Increase the holding Force,Dual Insulative Housing.

CE Certificate by European Union,MA Certificate by China Public Security Office.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
